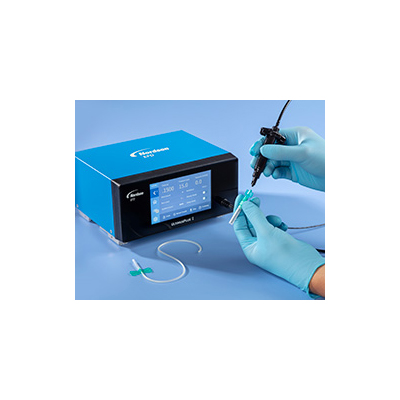

Simplify setup and operation with advanced touchscreen control of dispensing parameters.
UltimusPlus is so easy to use it allows users to focus on making accurate, controlled deposits.
Plus, full operator lockout of time, pressure, and vacuum settings prevents operator-to-operator variability between shifts.

In addition, the UltimusPlus’ Ethernet connection simplifies factory integration for high-volume, automated production.
Its internal digital dispense log automatically records dispense data and can be easily downloaded through a USB port to further improve process control.

- UltimusPlus I
The UltimusPlus I features a 0.7-7.0 bar (10-100 psi) pressure regulator and is ideal for dispensing a wide range of fluids.

- UltimusPlus II
The UltimusPlus II features a 0-1.0 bar (0.3-15 psi) pressure regulator and provides greater control when dispensing low-viscosity or thin fluids.

특징

Industry-leading intuitive touchscreen interface, in multiple languages
Electronic pressure regulation with full operator lockout
Optional barcode scanner
MultiShot™ capability

장점

Simplify setup and programming, allowing operators to focus on their process
Reduce factory air consumption and operating costs with Sleep Mode
Quickly shift between 16 programs without making manual adjustments for improved productivity
Dispense multiple shots from a single press of the foot pedal to minimize cycle time and reduce operator fatigue
